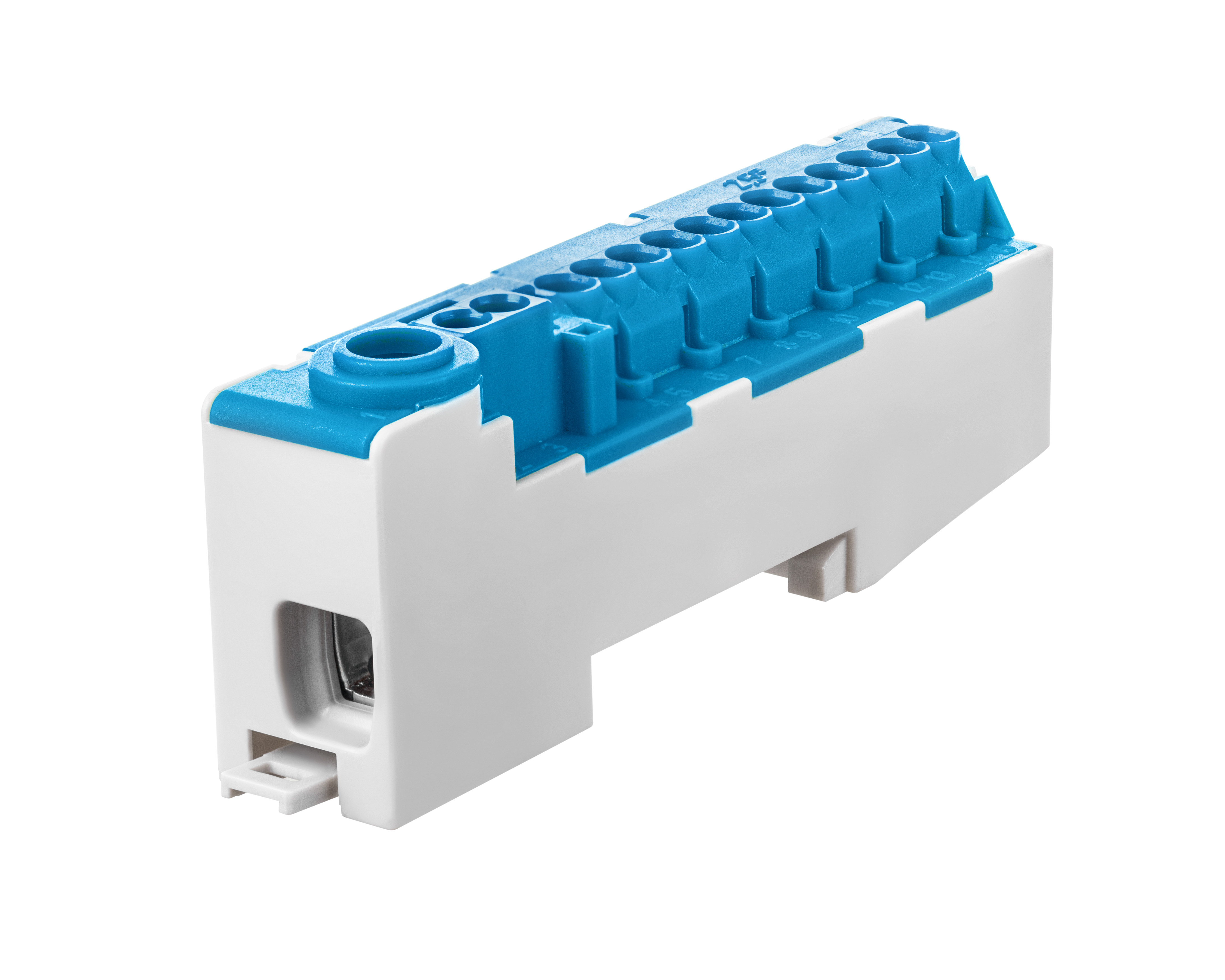

	PLUG-IN NEUTRAL TERMINAL N14-S NEW!
	Index: 0925-00
	Type: N14-S
	- installation: DIN RAIL TH35 - rated current: 80A - input - cable 1,5-25 mm2; cable + cord end terminal: 1-16 mm2 - output - cable 12x1-2,5 mm2; 2x1-4 mm2, cable + cord end terminal: 12x0,75-1,5 mm2; 2x1-2,5 mm2 - number of poles - 1 - color blue Standard: EN 60998/0613 PKWiU: 27.33.13.0 Catalog card (PDF) Declaration of agreement IN (PDF)
	EAN: 5904161510710
	PKWiU: 27.33.13.0
	Pieces per packaging: 10

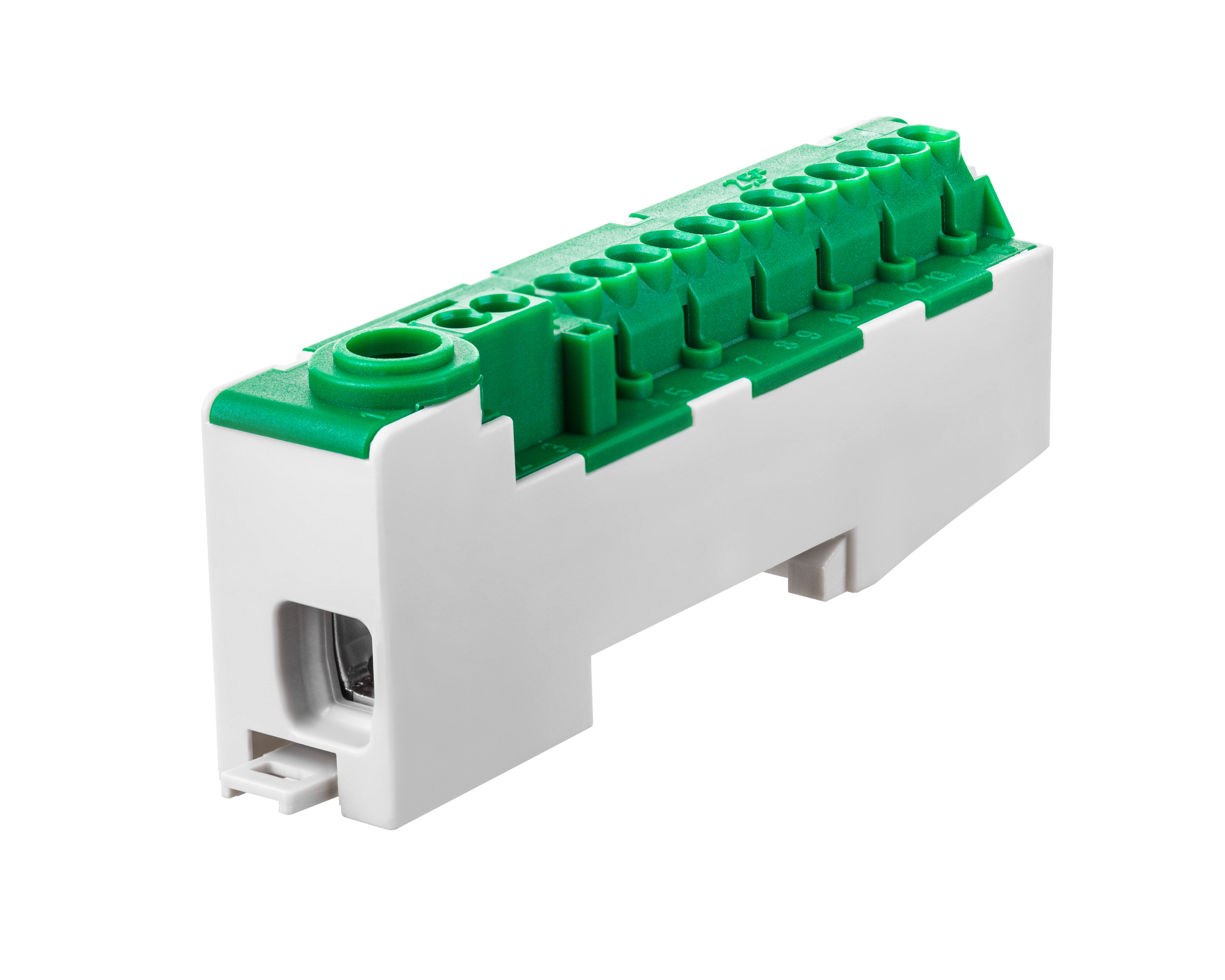

	PLUG-IN NEUTRAL TERMINAL N14-S NEW!
	Index: 0925-01
	Type: PE 14-S
	- installation: DIN RAIL TH35 - rated current: 80A - input - cable 1,5-25 mm2; cable + cord end terminal: 1-16 mm2 - output - cable 12x1-2,5 mm2; 2x1-4 mm2, cable + cord end terminal: 12x0,75-1,5 mm2; 2x1-2,5 mm2 - number of poles - 1 - color green Standard: EN 60998/0613 PKWiU: 27.33.13.0 Catalog card (PDF) Declaration of agreement IN (PDF)
	EAN: 5904161510727
	PKWiU: 27.33.13.0
	Pieces per packaging: 10


	Connectors 12x16mm², mounting on din TS35 rail, 690V, 63A, blue NEW!
	Index: 0927-00
	Type: N12-F-2
	Technical data: - number of inputs - 12 - rated current 63A - nominal voltage 690V - mounting method - DIN rail - number of poles - 1 - color blue-grey Standard: EN 60998/0613 PKWiU: 27.33.13.0 Catalog card (PDF) Dimensions (PDF) Declaration of agreement IN (PDF)
	EAN: 5904161513476
	PKWiU: 27.33.13.0
	Pieces per packaging: 10


	Distribution erthing terminals PE12-F2 NEW!
	Index: 0927-01
	Type: PE12-F2
	Technical data: - number of inputs - 12 - rated current 63A - nominal voltage 690V - mounting method - DIN rail - number of poles - 1 - color yellow-green Standard: EN 60998/0613 PKWiU: 27.33.13.0 Catalog card (PDF) Dimensions (PDF) Declaration of agreement IN (PDF)
	EAN: 5904161513483
	PKWiU: 27.33.13.0
	Pieces per packaging: 10

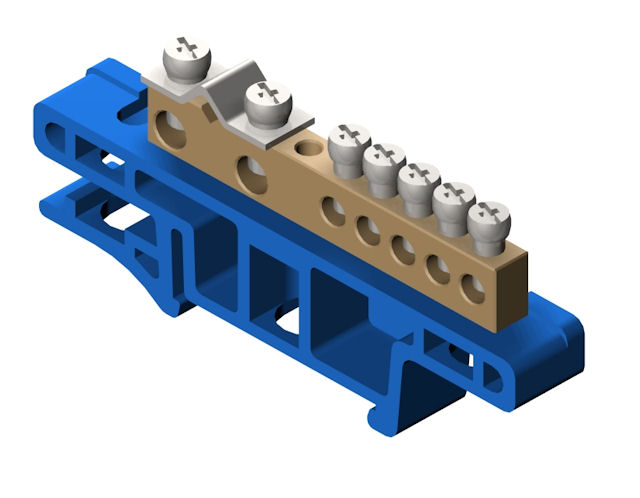

	Listwa zaciskowa 7-torowa do montażu na szynie TH35
	Index: 0920-00
	Type: LZ-7/N
	Listwa zaciskowa 7-torowa do montażu na listwie TH35 niebieski RAL 5005 Dimensions (PDF) Declaration of agreement IN (PDF)


	Pieces per packaging: 20


	Listwa zaciskowa 7-torowa do montażu na szynie TH35
	Index: 0920-01
	Type: LZ-7/N
	Listwa zaciskowa 7-torowa do montażu na listwie TH35 żółty RAL 1021 Dimensions (PDF) Declaration of agreement IN (PDF)


	Pieces per packaging: 20

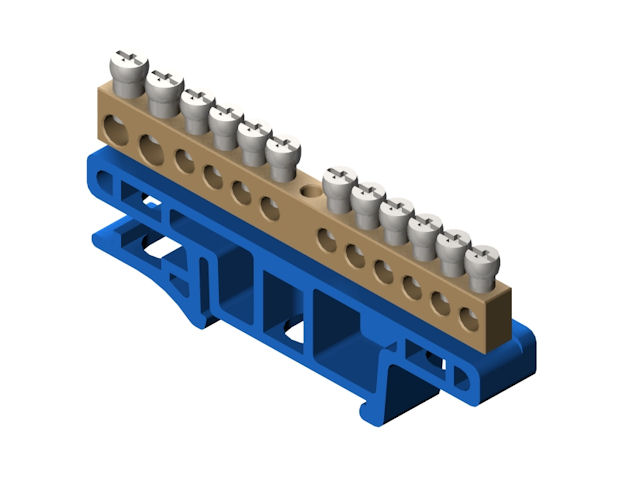

	Listwa zaciskowa 12-torowa do montażu na szynie TH35
	Index: 0921-00
	Type: LZ-12/N
	Listwa zaciskowa 12-torowa do montażu na listwie TH35 niebieski RAL 5005 Dimensions (PDF) Declaration of agreement IN (PDF)


	Pieces per packaging: 20


	Listwa zaciskowa 12-torowa do montażu na szynie TH35
	Index: 0921-01
	Type: LZ-12/N
	Listwa zaciskowa 12-torowa do montażu na listwie TH35 żółty RAL 1021 Dimensions (PDF) Declaration of agreement IN (PDF)


	Pieces per packaging: 20

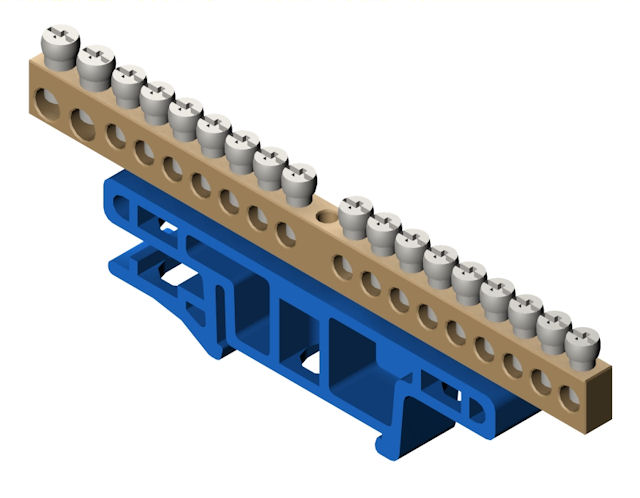

	Listwa zaciskowa 18-torowa do montażu na szynie TH35
	Index: 0922-00
	Type: LZ-18/N
	Listwa zaciskowa 18-torowa do montażu na listwie TH 35 niebieski RAL 5005 Dimensions (PDF) Declaration of agreement IN (PDF)


	Pieces per packaging: 20


	Listwa zaciskowa 18-torowa do montażu na szynie TH35
	Index: 0922-01
	Type: LZ-18/N
	Listwa zaciskowa 18-torowa do montażu na listwie TH 35 żółty RAL 1021 Dimensions (PDF) Declaration of agreement IN (PDF)


	Pieces per packaging: 20

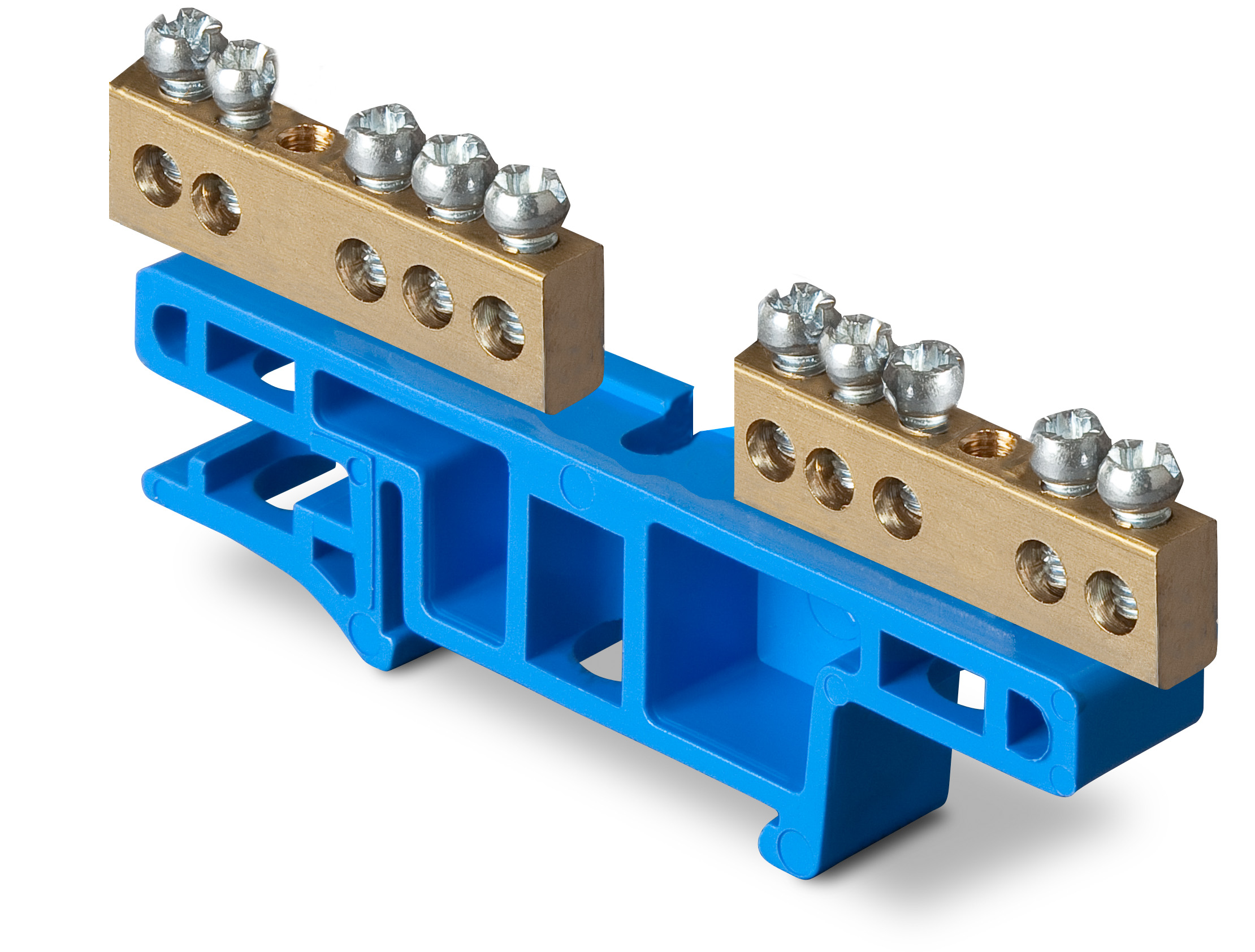

	Listwa zaciskowa 2x5-torowa
	Index: 0924-00
	Type: L2-5+5
	Listwa zaciskowa 18-torowa do montażu na listwie TH 35 Dimensions (PDF) Declaration of agreement IN (PDF)


	Pieces per packaging: 20


	Listwa zaciskowa 2x5-torowa
	Index: 0924-01
	Type: L2-5+5
	Listwa zaciskowa 2x5-torowa do montażu na listwie TH 35 żółty RAL 1021 Dimensions (PDF) Declaration of agreement IN (PDF)


	Pieces per packaging: 20

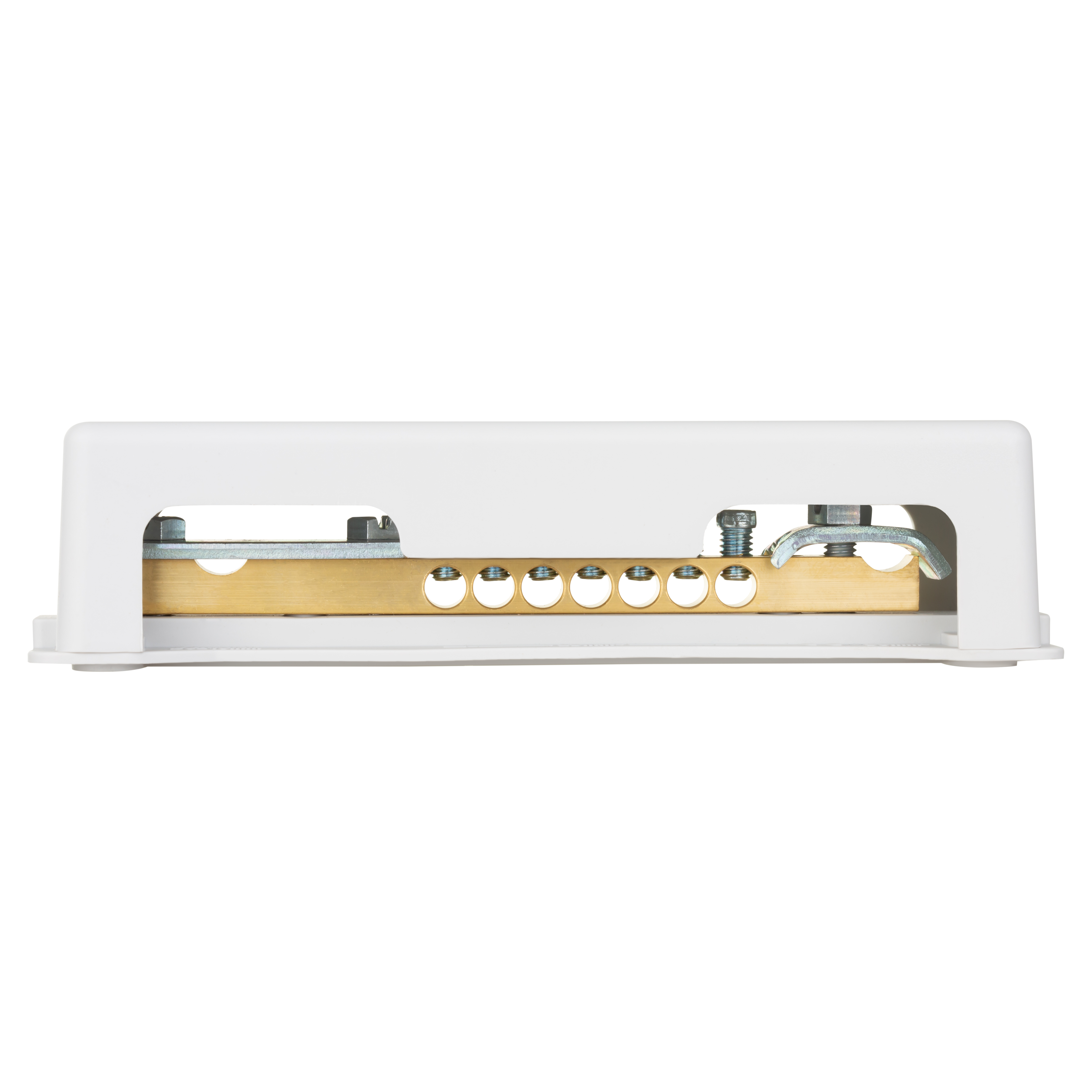

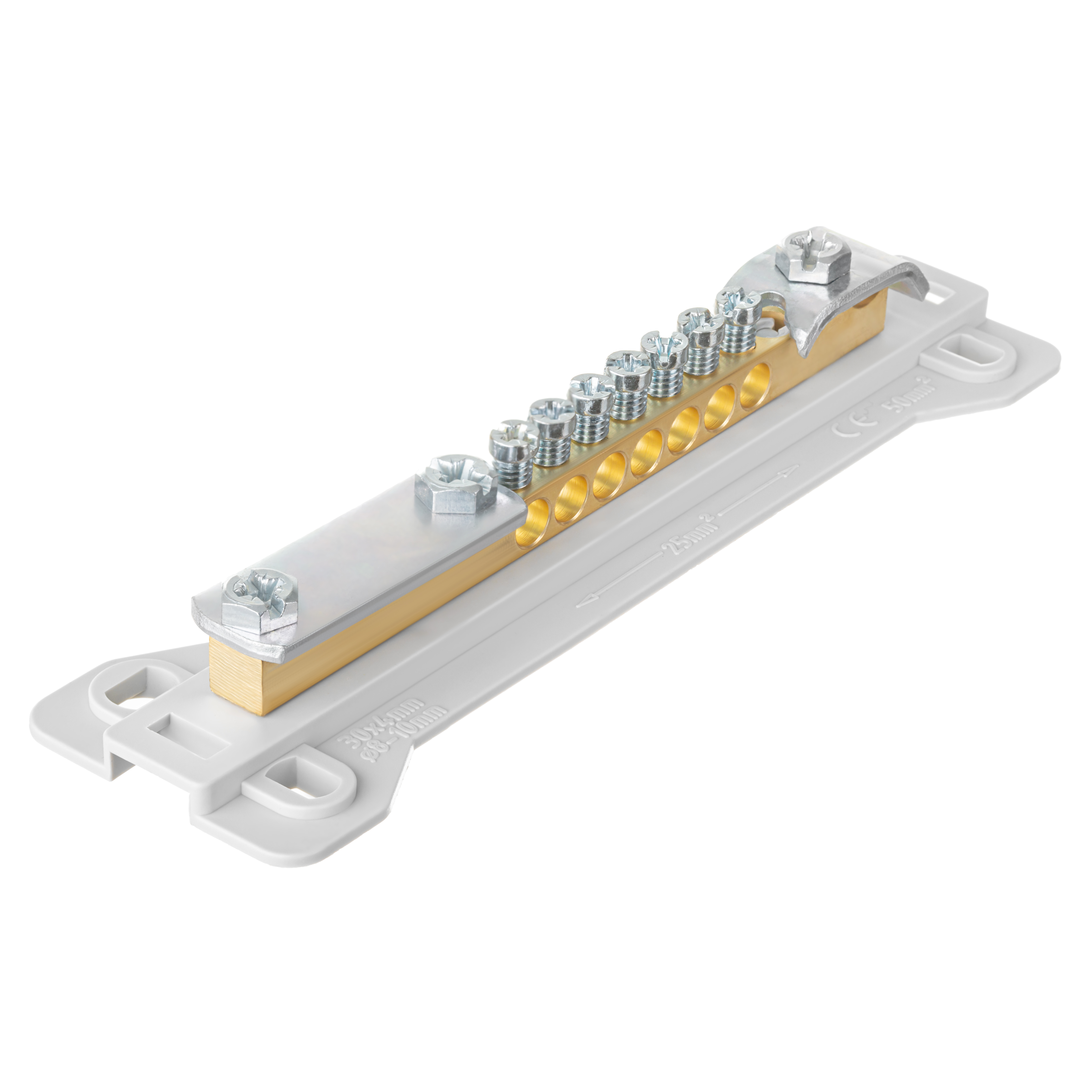

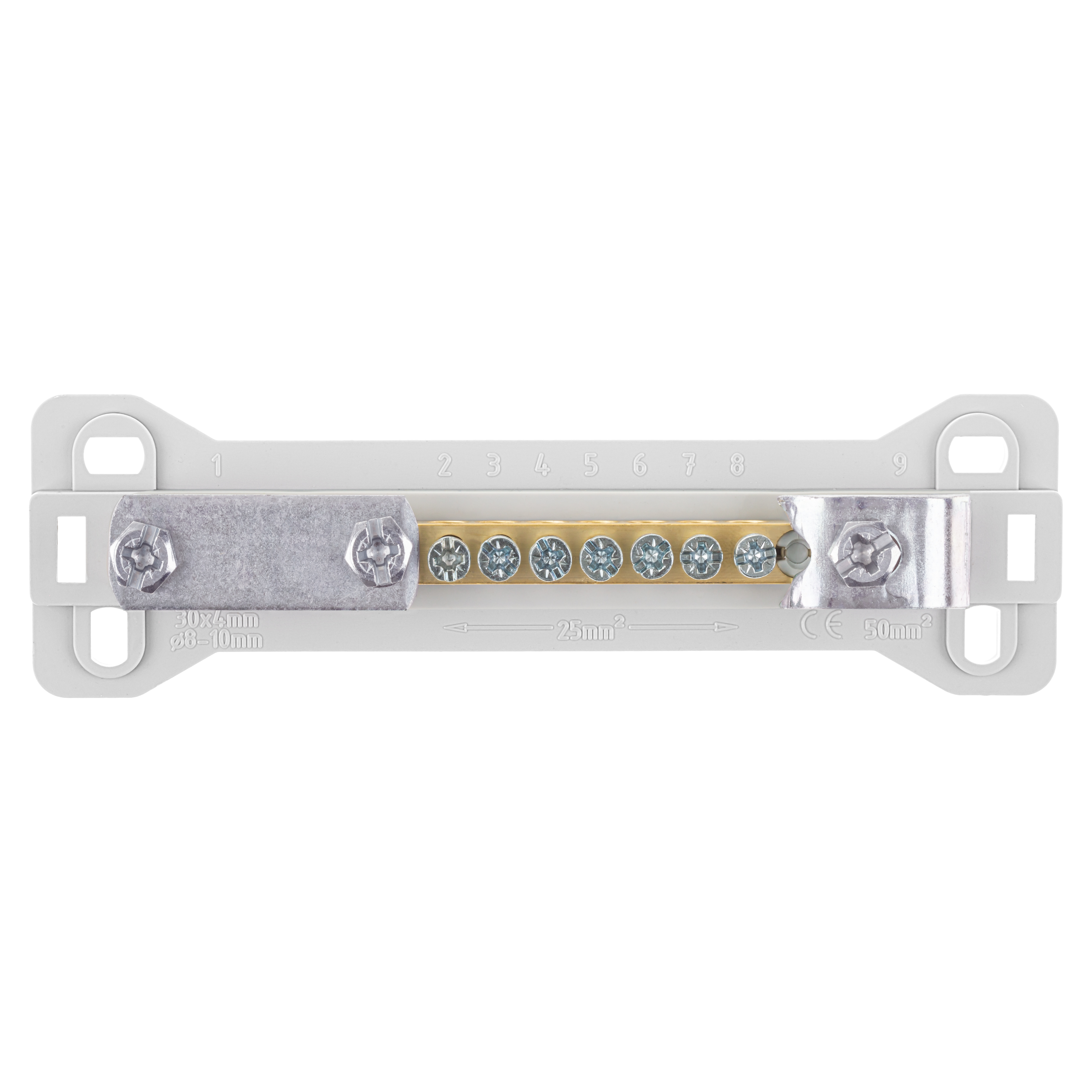

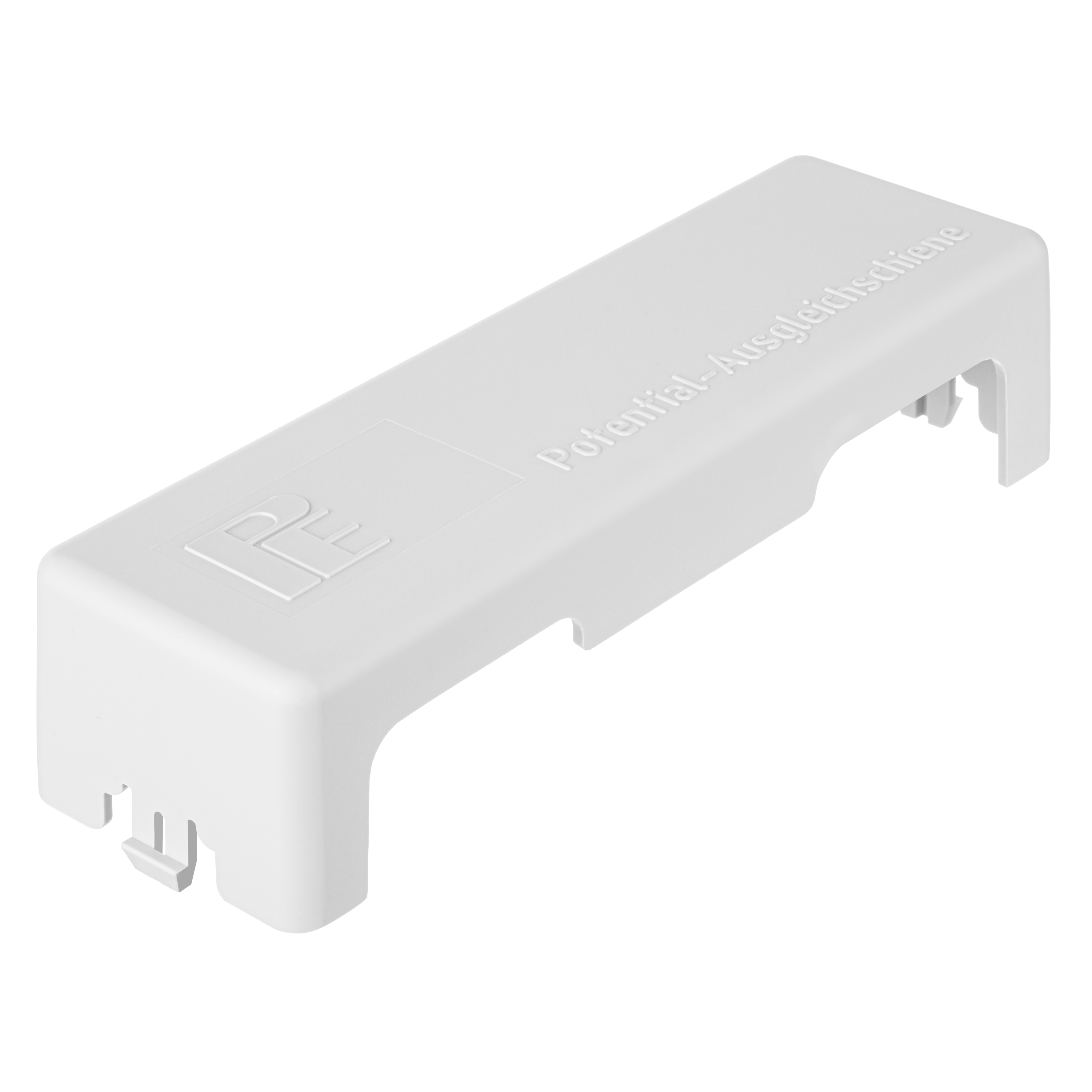

	Compensation rail, 1x flat bar, 7x2,5-25mm2, 1x8-10mm halogen-free NEW!
	Index: 0909-00
	Type: Szyna wyrównawcza
	Compensation rail, 1x flat bar, 7x2,5-25mm2, 1x8-10mm halogen-free The equipotential bar is also known as the earthing bar. This rail is placed on the border of successive lightning protection zones, allowing for equipotential bonding between the external lightning protection device and the conductive parts of the object. Installed inside the installation, it protects electrical devices against high voltages, surge currents and pulses of electromagnetic fields. The equalizing rail is a small component of the electrical installation, but it plays a very important role. PKWiU: 27.33.13.0 Catalog card (PDF) Declaration of agreement IN (PDF)
	EAN: 5904161510772
	PKWiU: 27.33.13.0
	Pieces per packaging: 10


	1-phase fork connection busbar 12/215mm, 10mm2, 63A NEW!
	Index: 09441-00.
	Type: 1P/12/63A
	Compensation rail, 1x flat bar, 7x2,5-25mm2, 1x8-10mm halogen-free The equipotential bar is also known as the earthing bar. This rail is placed on the border of successive lightning protection zones, allowing for equipotential bonding between the external lightning protection device and the conductive parts of the object. Installed inside the installation, it protects electrical devices against high voltages, surge currents and pulses of electromagnetic fields. PKWiU: 27.33.13.0 Catalog card (PDF) Dimensions (PDF) Declaration of agreement IN (PDF)
	EAN: 5904161514749
	PKWiU: 27.33.13.0
	Pieces per packaging: 50


	COMB BUSBAR 3-pole 12/215mm, 10mm2, 63A NEW!
	Index: 09443-00.
	Type: 3P/12/63A
	Technical data: - 3 phase - 12 modules - maximum load current: 63A - nominal voltage: 240V/415V - rail length: 210 mm - cross-section: 10 mm2 - color grey PKWiU: 27.33.13.0 Catalog card (PDF) Dimensions (PDF) Declaration of agreement IN (PDF)
	EAN: 5904161513131
	PKWiU: 27.33.13.0
	Pieces per packaging: 25
